Berth with precision. See the whole port.

A next-generation berthing aid system for oil & gas terminals, LNG receiving terminals, FSOs and FSRUs — built around 3D LiDAR and laser sensor fusion, synchronised to live AIS, multi-camera CCTV and on-site weather.

Request a Demo → See the Platform

One-Line

Positioning / 02

Precision 3D berthing. Live port awareness. One platform.

Where conventional laser systems measure two distances to a hull, NaviTrak fuses 3D LiDAR with AIS, CCTV, weather, fender analytics and zone-based alerting — monitoring every approach, contact and departure with millisecond fidelity. The same platform doubles as the terminal's live port traffic monitor.

Beyond a Laser System

Category / 03

The laser stays. Everything around it changes.

Conventional Berthing Aid

Two distances to a hull.

  • —Two laser distance points
  • —Approach speed at the laser plane
  • —Standalone monitor at the berth
  • —Manual log of vessel and outcome
  • —No live port traffic context
  • —No replay; no audit-grade record

NaviTrak · Next Generation

The full hull, the full port, one record.

  • +3D LiDAR + laser fusion across the approach window
  • +Synchronised AIS — vessel ID, dimensions, track
  • +Multi-camera CCTV with auto-cued PTZ presets
  • +Wind, gust, wave and tide bound to every contact
  • +Fender analytics against rated energy curves
  • +Replayable, time-locked audit for every operation

Four Anchor Benefits

Why NaviTrak / 04

Why NaviTrak.

01Precision

True hull-shape geometry.

3D LiDAR plus laser distance — not two single points. Compression rate, approach angle, settle distance, all computed in real time.

02Awareness

Live AIS for every vessel.

One map fuses AIS, CCTV, weather and zone state. Faster decisions; no flipping between monitors.

03Audit

Every operation, replayable end-to-end.

Pilot, berth, vessel, weather, sensor and outcome bound to one immutable record. Indisputable evidence.

04Intelligence

A live operations dashboard.

Utilisation, turnaround, success rate, fender impact, repeat customers — out of the box. No BI project.

Seven Capability Pillars

Platform / 05

Each pillar runs alone in adjacent systems. Only NaviTrak runs them as one record.

PILLAR 01

Precision 3D berthing.

3D LiDAR units mounted with laser distance sensors. Each laser configured per berth with a calibration snapshot captured the moment an operation begins — forensically reproducible months or years later.

Why it matters. A bad berthing is rarely caught by a single distance. It is the angle, the rate of compression, and the off-axis drift. NaviTrak measures all of them and writes them to an immutable record.

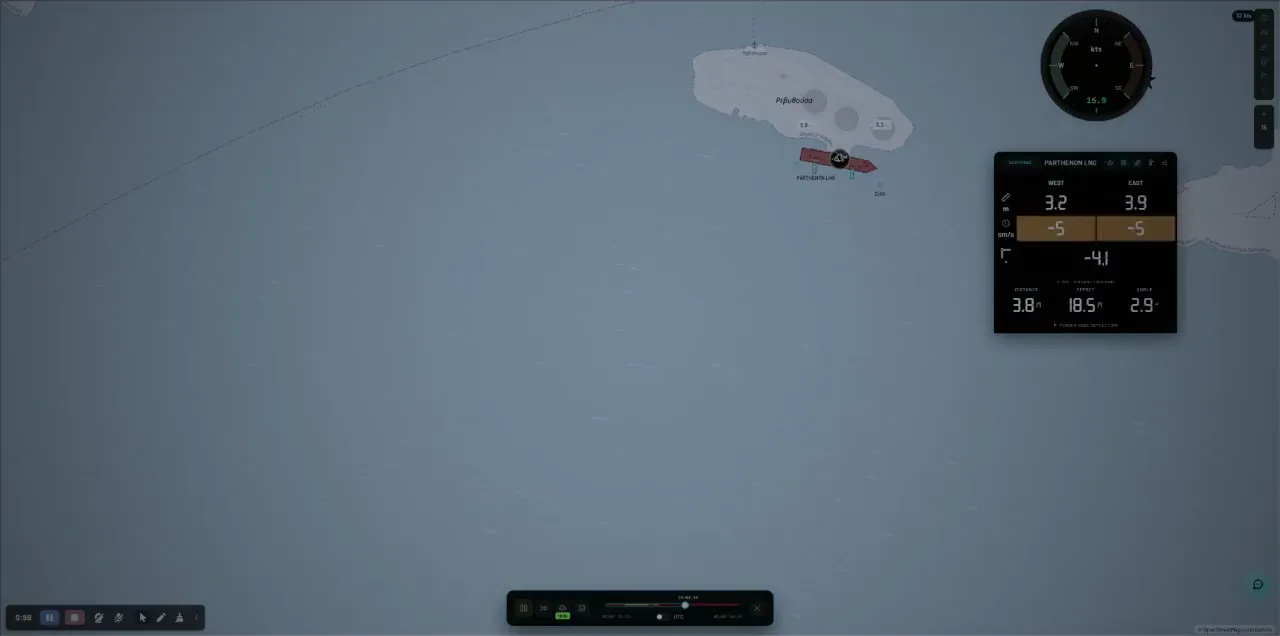

[ FIG · Live 3D LiDAR + laser visualisation ]
JETTY14.6 mCOMPRESSION RATE2.4 cm/sAPPROACH ANGLE3.1°
Operation Types
Berthing · Drift-off · Unmooring
Approach Speed
Max + first-contact
Compression Rate
cm/s, contact phase
Settle Distance
Per laser
Departure Metrics
Receding speed · clearance
Calibration Record
Snapshot per operation

PILLAR 02

Live port traffic awareness.

NaviTrak's home page is a live operational map of the entire facility. AIS decoded by a dedicated Rust service ingesting up to thirteen physical and network sources, with tile-based fetching that stays smooth at any zoom.

Why it matters. A modern terminal monitors approach lanes, anchorages and neighbouring traffic — that is where the next problem comes from. NaviTrak shows all of it on one map.

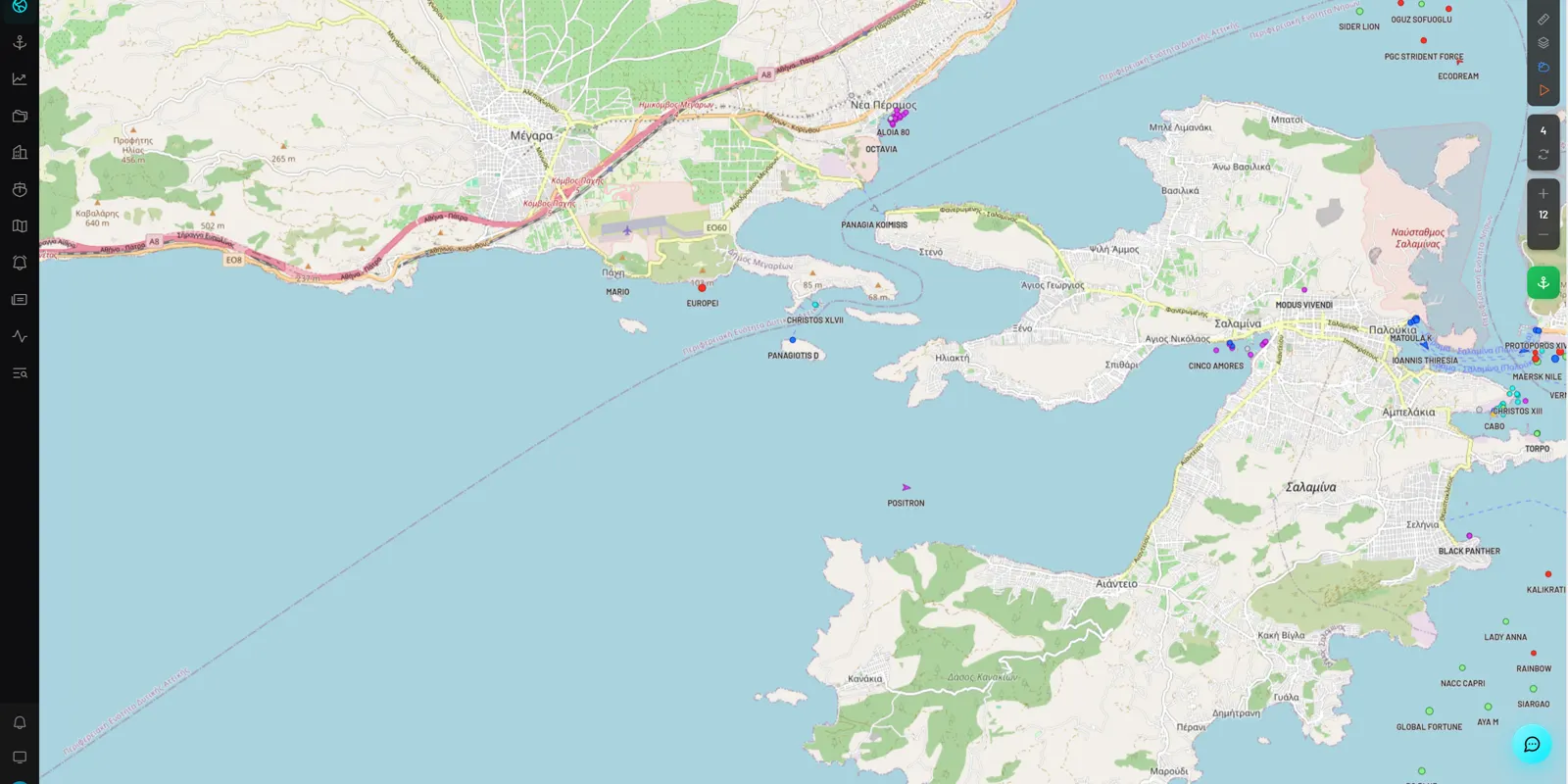

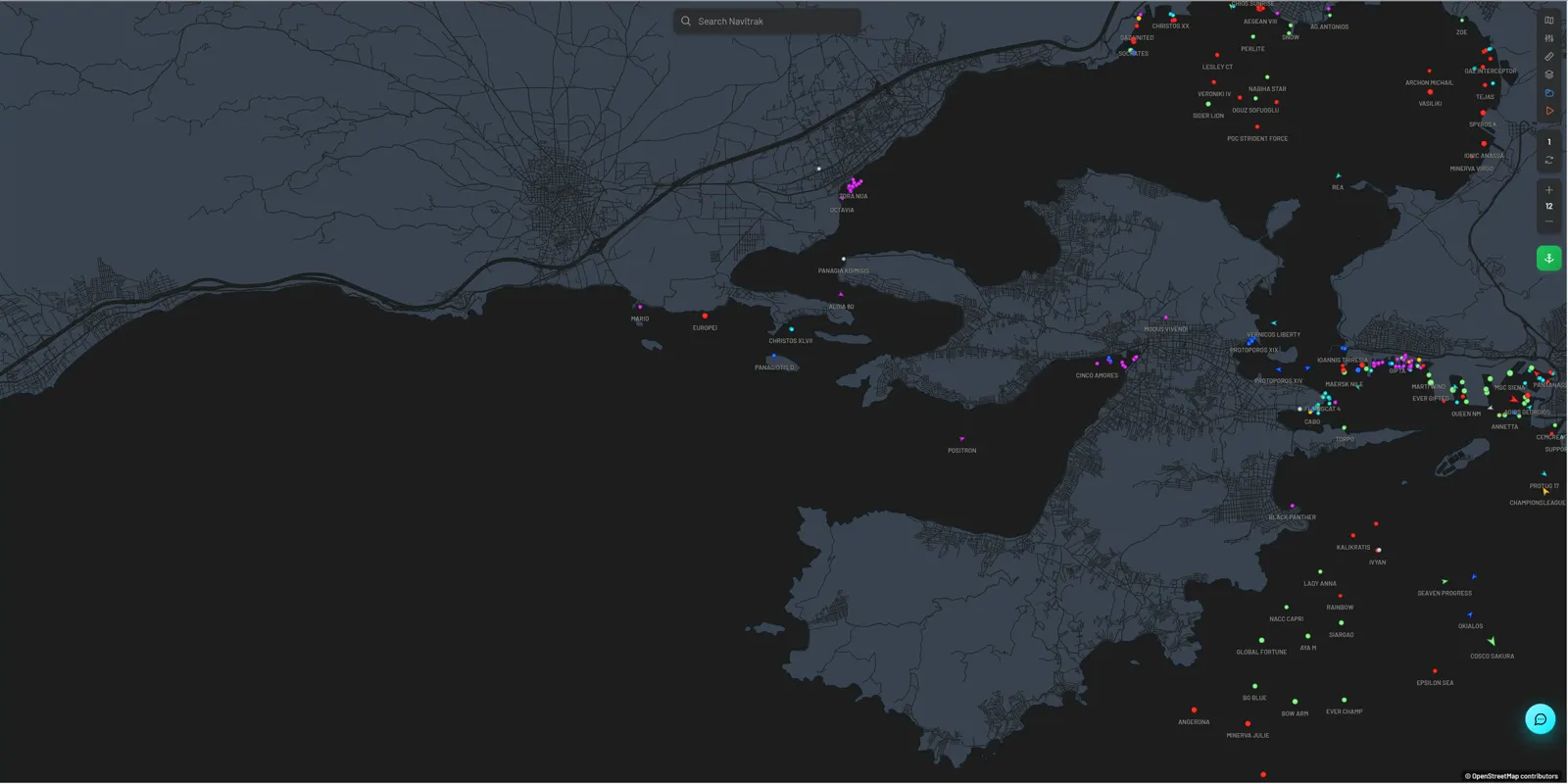

[ FIG · Live operational map · AIS + zones + weather ]
LNG-CRYOBERTHED38° 00.42 N23° 26.18 E5 VESSELS
Concurrent AIS Feeds
Up to 13 in production
Refresh
10s · 3s at zoom ≥16
Rendering
Canvas → vector → polygon
Base Layers
Satellite · street · nautical
Vessel Master
MMSI-keyed local cache
Port Reference
Full UN/LOCODE bundled

PILLAR 03

Operation lifecycle & replay.

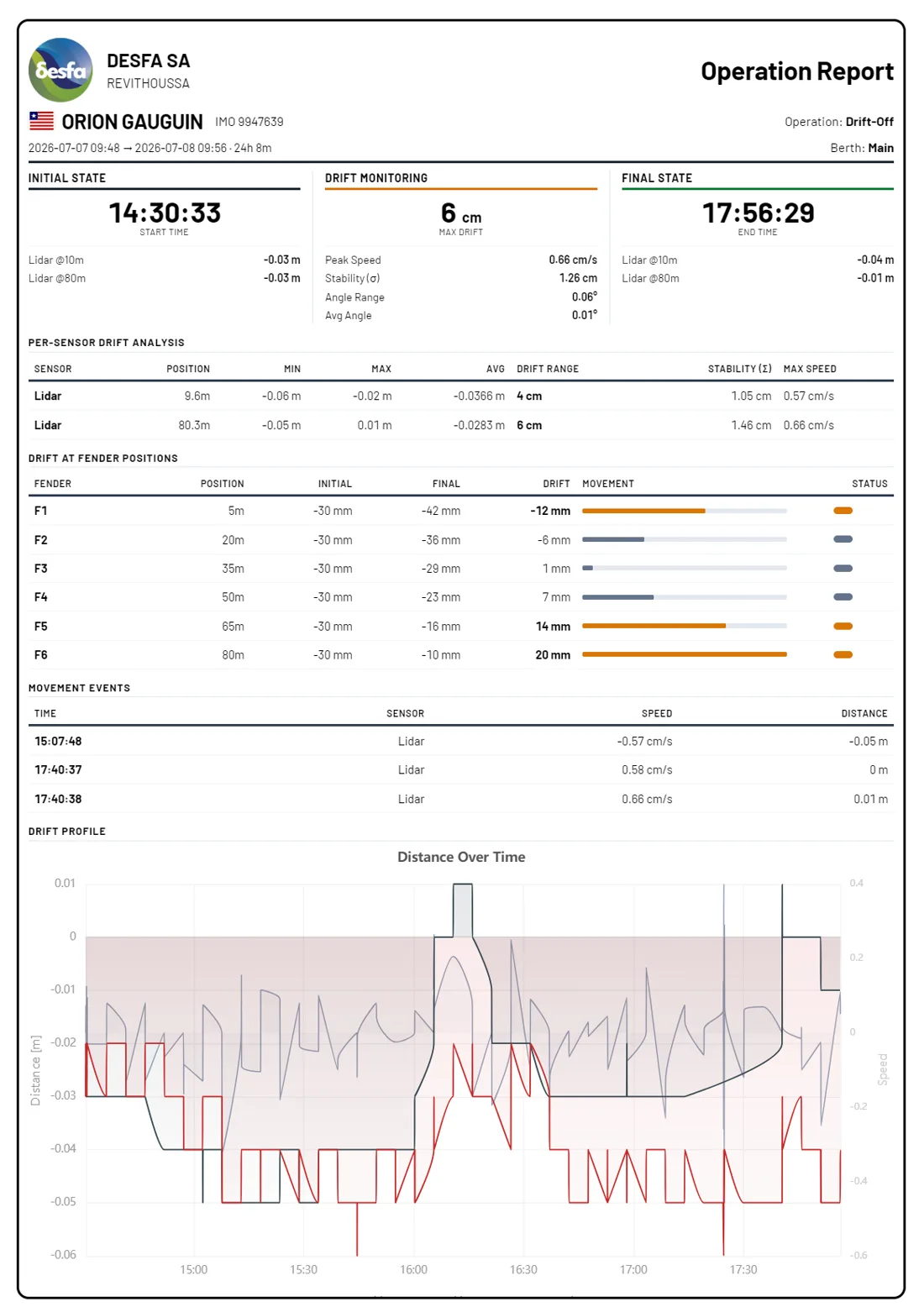

Berthing, drift-off and unmooring are first-class operation types — each with sensor activation, real-time monitoring, and a clean stop with success or failure flag. Two playback modes turn every operation into a training and audit asset.

Why it matters. Playback is the defensible evidence base for claim mitigation, the training tool for junior pilots, and the regulatory submission generator. All from the same record.

[ FIG · Operation manager + playback scrubber ]
T-30:00CONTACTT+15:00EXPECTEDACTUALSPEED1×2×5×10×EXPORTPDFXLSXPNG
Playback Modes
Free · operation-locked
Speed Control
1× – 10× · reverse · pause
Path Interpolation
Hermite spline w/ heading
Pre-fetch
80 % chunk threshold
Visualisation
Expected vs actual hull
Export
PDF · Excel · image

PILLAR 04

Fixed & PTZ camera integration.

Multi-camera RTSP intake from ONVIF-compatible IP cameras. Streams transcode on the fly — H.265 to H.264 where required — and reach the operator console over WebRTC for low-latency live view.

Why it matters. A laser tells you what is happening; a camera tells you what it looks like. Together they convert a number on a screen into evidence a non-engineer can verify in two seconds.

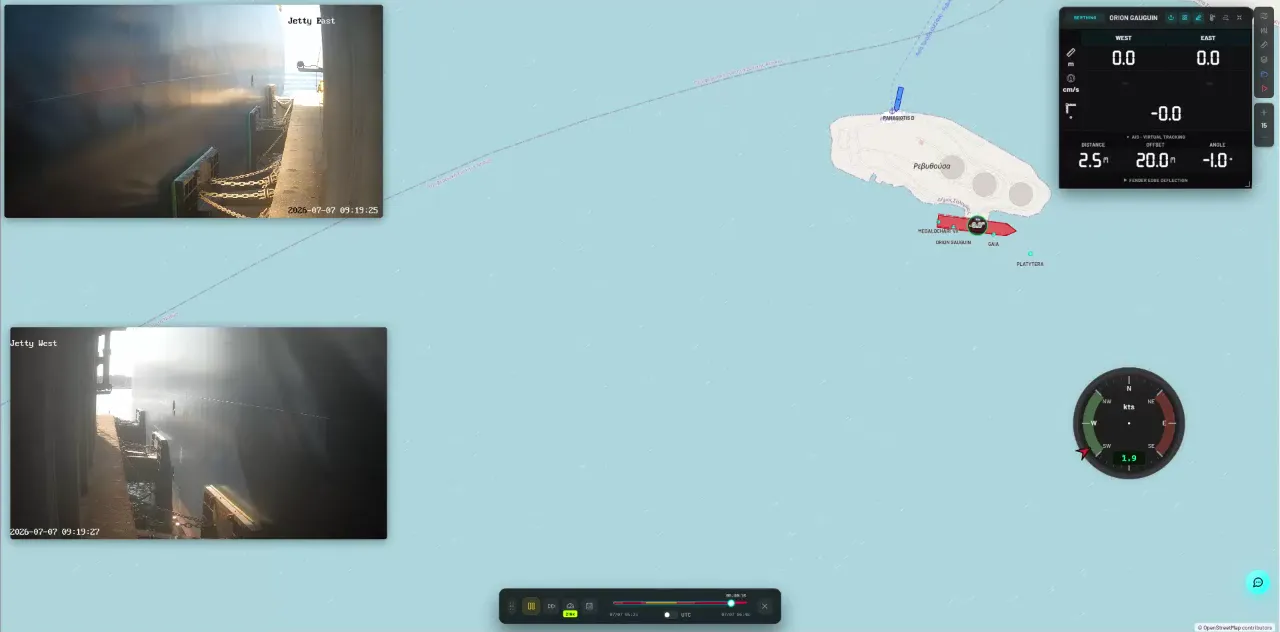

[ FIG · 4-up PTZ grid · berth presets ]
PTZ-01 · BERTH-AALONGSIDE14:32:18FIXED-04 · MANIFOLDSTATIC14:32:18PTZ-02 · APPROACHBOW-CAM14:32:18FIXED-07 · GANGWAYSTATIC14:32:18
Intake
RTSP · ONVIF · multi-vendor
Delivery
WebRTC · HLS
Codecs
H.264 / H.265 in · H.264 out
PTZ Presets
Per-camera, per-berth
Auto-cue
At operation start
Privacy Mask
Region-based editor

PILLAR 05

Weather & environmental context.

On-site weather and wave/tide stations integrated through NaviTrak's in-house weather service. GFS GRIB2 forecast layers parsed in the browser for live overlays — wind particles, cloud, rain, temperature.

Why it matters. The difference between "0.6 m/s" and "0.6 m/s with a 28-knot crosswind on an outgoing tide" is the difference that stands up in front of a P&I club.

[ FIG · Wind-particle overlay · station readout ]
WIND · 10 MIN AVG12.4M/SGUST 18.6 · 254°NWAVE Hsig1.2 mPERIOD6.4 sTIDE+0.42 mPRESSURE1014 hPa
Wind
kn · m/s · mph · Beaufort
Aggregations
Raw · min · 15m · hour · day
Forecast
GFS 1° · 30 min refresh
Wave / Tide
Hsig · period · tilt · level
Pressure / Temp / RH
Outside + inside
Map Overlays
Wind · cloud · rain · temp

PILLAR 06

Berth & zone management.

A map-first polygon editor — vertex drag, midpoint split, snap-to-close, live area readout, undo/redo, self-intersection prevention. Six default zone types ship out of the box, each with its own event semantics.

Why it matters. Zones turn the map from a picture into a state machine. The terminal's operational rules are encoded once, and run continuously.

[ FIG · Polygon editor · zone types ]
APPROACHBERTH-ARESTRICTEDAREA12,840 m²
Zone Types
Berth · anchorage · restricted
Plus
Approach · loading · storage
Geometry
PostGIS-backed
Live State
Per-vessel in/out + timestamps
Berth Metadata
LOA · DWT · draught · bearing
Audit
Immutable zone-event log

PILLAR 07

Performance analytics & audit.

A five-tab dashboard built on the same database the operators write into — so the numbers shown to a manager are the numbers the duty officer is producing right now. Multi-channel alerts wired into the same engine.

Why it matters. Analytics that come for free with the operations system are analytics that actually get used. The CFO sees what the loading master sees, just sliced differently.

[ FIG · Dashboard · utilisation + success rate ]
OVERVIEWBERTHVESSELREVENUEOPERATIONALOPERATIONS · 30D142▲ 12AVG TURNAROUND11h▼ 0.4hFENDER PEAK62%▼ 3 ptsBERTH UTILISATION · 30DSUCCESS RATE98.4%▲ 1.2 pts
Tabs
Overview · berth · vessel
Plus
Revenue · operational
Filters
7 / 30 / 90 / 365 / custom
Success Rate
Traffic-light coloured
Alert Channels
Email · SMS · WhatsApp · web · pager
Export
PDF · image · Excel

Sub-System Synergy

Lifecycle / 06

A single berthing, end to end.

The differentiator is not any one capability — it is what they do together during an actual operation. A representative LNG berthing on NaviTrak unfolds like this:

Each pillar exists in adjacent systems. Only NaviTrak runs them as one record.

T-30 min
Vessel crosses the approach zone. AIS fires the zone event; the alert engine pings duty officer + trade desk via WhatsApp. Vessel is matched and dimensioned automatically.
T-15 min
Pilot boards. Operation created. LiDAR + lasers activate on the lidar-service. The berth's camera cues to its alongside preset; PTZ snaps into position.
T-3 min
Vessel enters laser cones. Distances stream into the operator's measurement popup. 3D LiDAR tracks the full hull silhouette — bow angle is visible long before the laser plane.
Contact
First-contact time, speed, angle. Compression rate computed in cm/s. Fender analytics evaluate against rated energy. Wind, gust, wave and tide bound to the operation record.
T+15 min
Settle distances stable. Call worksheet records vessel-all-fast, first-line-ashore, gangway out, vapour arm connected.
Next morning
Three managers, one record. Terminal manager opens the dashboard; trade reviews the call lifecycle; HSE scrubs the playback to the contact moment. Nobody asked for an export.

Who NaviTrak Is For

Audiences / 07

One system. Three angles. Same data.

01 · Operational

The everyday console.

Loading / Port Master · Marine Superintendent · Duty Officer · Pilot

  • —Live operational map & sensor visualisations
  • —Operation lifecycle & manager panel
  • —Auto-cued PTZ camera feeds
  • —Multi-channel alerts & acknowledgements
02 · Commercial

The demurrage and customer record.

Trade & Supply Manager · Berth Booking · Customer Liaison

  • —30+ milestone LNG call worksheet
  • —Repeat-customer analytics & turnaround
  • —Occupancy & berth-utilisation reports
  • —Per-call quantity, hours, exportable
03 · Executive

The board pack and the insurance file.

Terminal Manager · COO · CEO · HSEQ · CFO

  • —Success-rate KPIs with traffic-light cards
  • —Fender impact & rating-curve analytics
  • —Replayable, time-locked audit trail
  • —Regulatory exports — PDF & Excel

Datasheet at a Glance

Datasheet / 08

The platform, in numbers.

3D LiDAR + Laser

Sensor fusion

Operation types
Berthing · Drift · Unmoor
Comms
Ethernet TCP/IP
Per-laser config
Offset · cut-off · relay
Calibration
Snapshot at op start

AIS Reception

Resilient ingest

Standards
NMEA 0183 · types 0–27
Concurrent feeds
Up to 13
Transports
UDP · TCP · HTTP
Raw retention
Indefinite

Weather & Wave

Environmental layer

Forecast
GFS 1° GRIB2 · 30 min
Aggregations
Raw → daily
Wave parameters
Hsig · period · tilt · tide
Map overlays
Wind · cloud · rain · temp

CCTV & Video

Camera platform

Intake
RTSP · ONVIF
Codecs
H.264 / H.265 → H.264
Delivery
WebRTC · HLS
PTZ presets
Per-camera, per-berth

Deployment Footprint

Deployment / 09

From a single jetty to a regional portfolio.

Multi-tenant by design, with company hierarchy, port-level configuration and per-entity isolation. A modern, mobile-first operator console runs on browsers; tablets and phones are the preferred surface for advanced functionality.

Reference Deployment · Single LNG Terminal

Database
TimescaleDB + PostGIS
AIS decoder
Dedicated Rust service · up to 13 sources
LiDAR service
Per-sensor processing & calibration
Camera proxy
RTSP intake → WebRTC delivery
Weather integration
In-house service, multi-vendor
Alert engine
Email · SMS · WhatsApp · web · pager
Identity
Enterprise IdP · OIDC / OAuth2
Reverse proxy
HTTP/3 + QUIC
Form factor
Single appliance-class server
Operator console
Light + dark themes · responsive
